TE0725LP-02-72C-AT

AMD Artix™ 7 XC7A100T-2CSG324I
Commercial temperature range
64 MByte Flash memory
2 x 50 pin headers with 2.54 mm pitch, ideal for breadboard use
1.8 V single supply with on board voltage regulators
95 I/O's (42 + 42 + 3 + 8)
25 MHz system clock
I²C EEPROM
7.3 x 3.5 cm form factor
JTAG/UART connector
One user LED
Optional HyperRAM (8 to 32 MByte) or HyperFlash
HyperRAM from Cypress cypress.com/products/hyperram-memory
HyperFlash from Cypress cypress.com/products/hyperflash-nor-flash-memory

Other assembly options for cost or performance optimization plus high volume prices available on request.

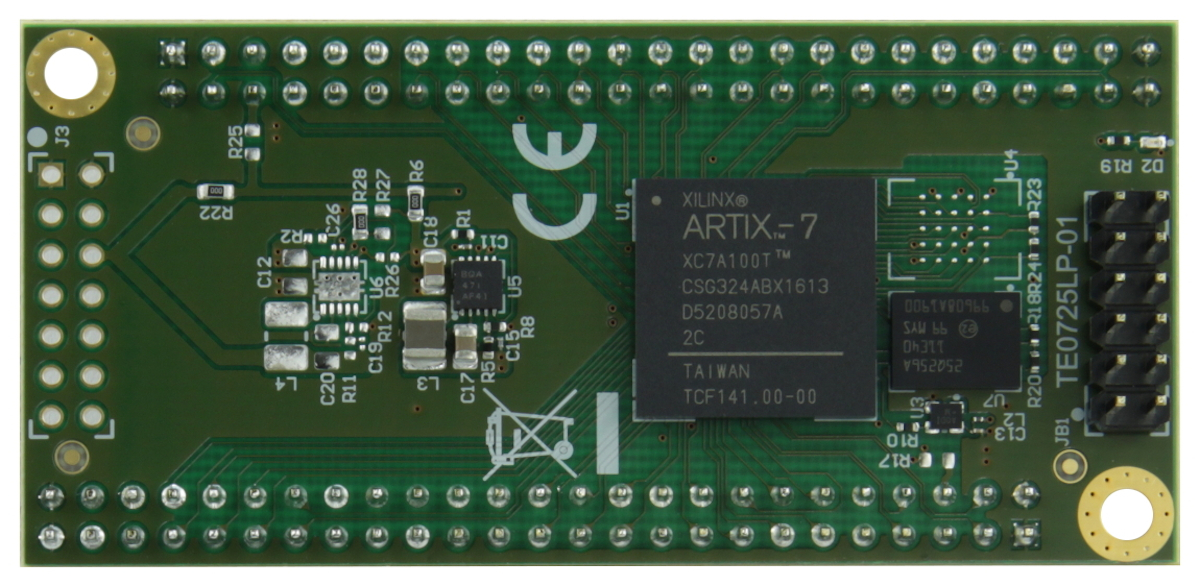

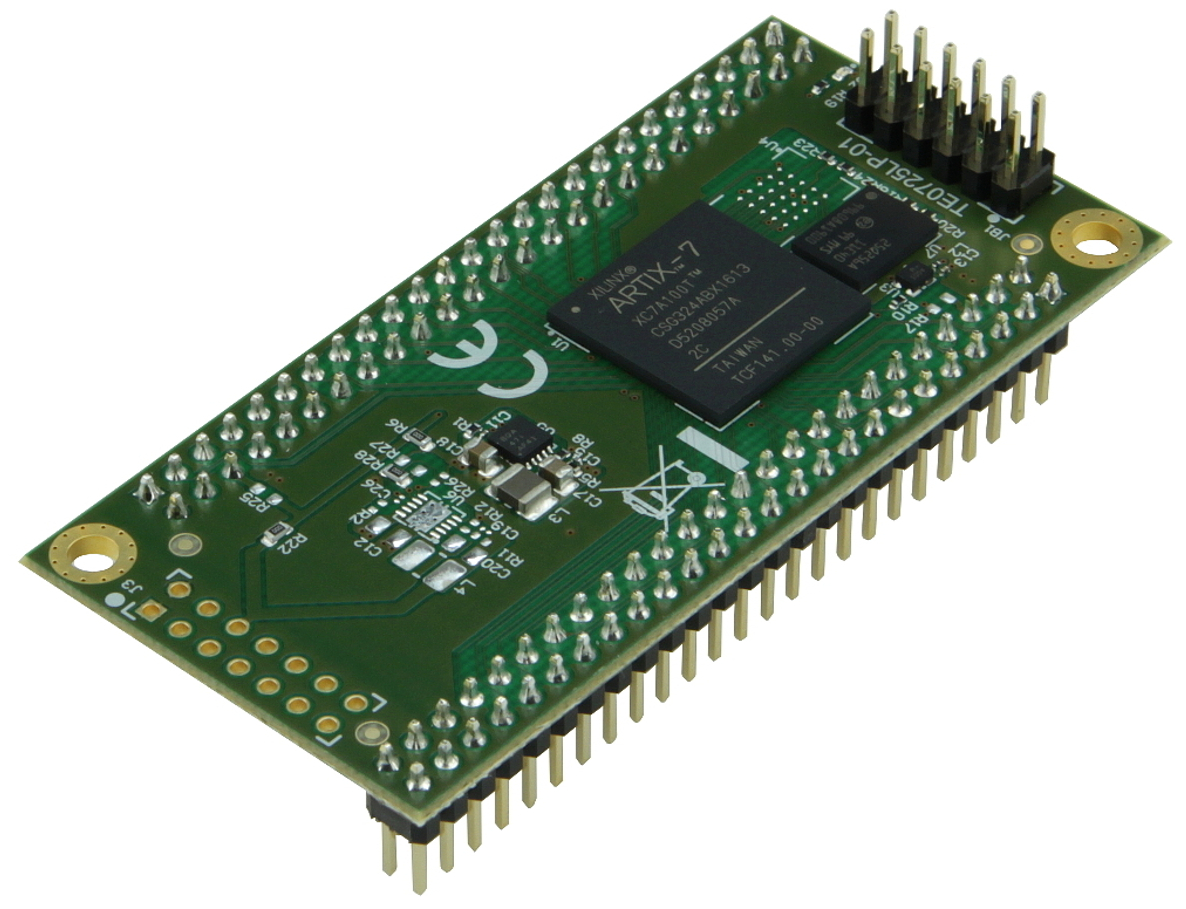

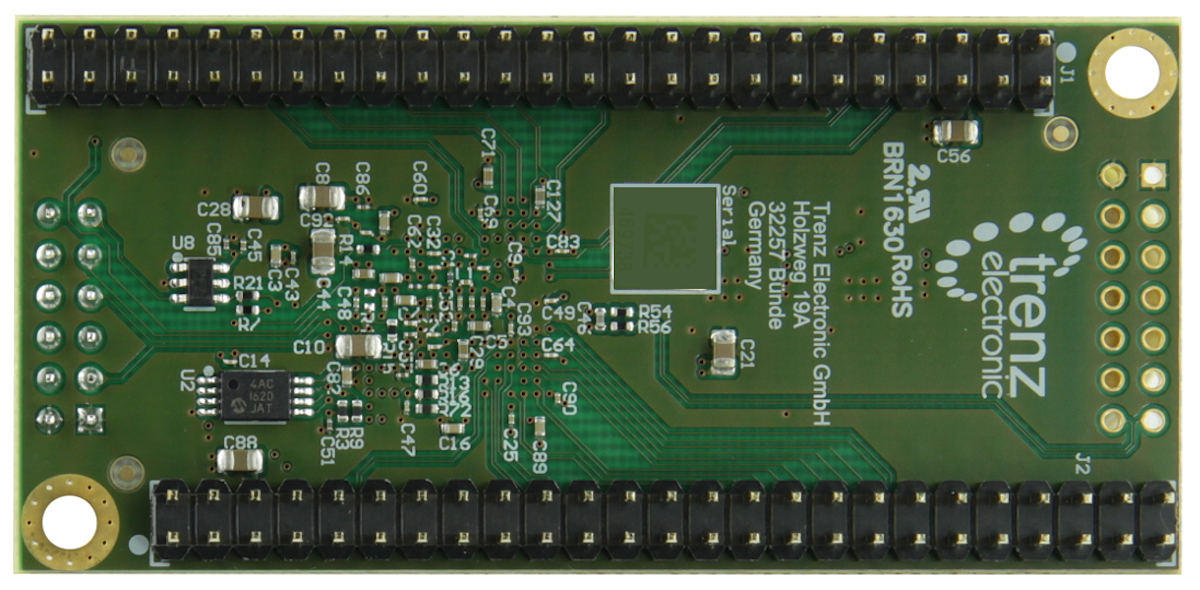

1 x TE0725LP-02-72C-AT Trenz Electronic FPGA module with AMD Artix™ 7 100T and soldered pin headers (J1, J2 pin headers soldered on bottom, J3 missing, JB1 soldered on top)

製品名	価格(税別)
TE0725LP-02-72C-AT	¥27,980	カートに入れる
